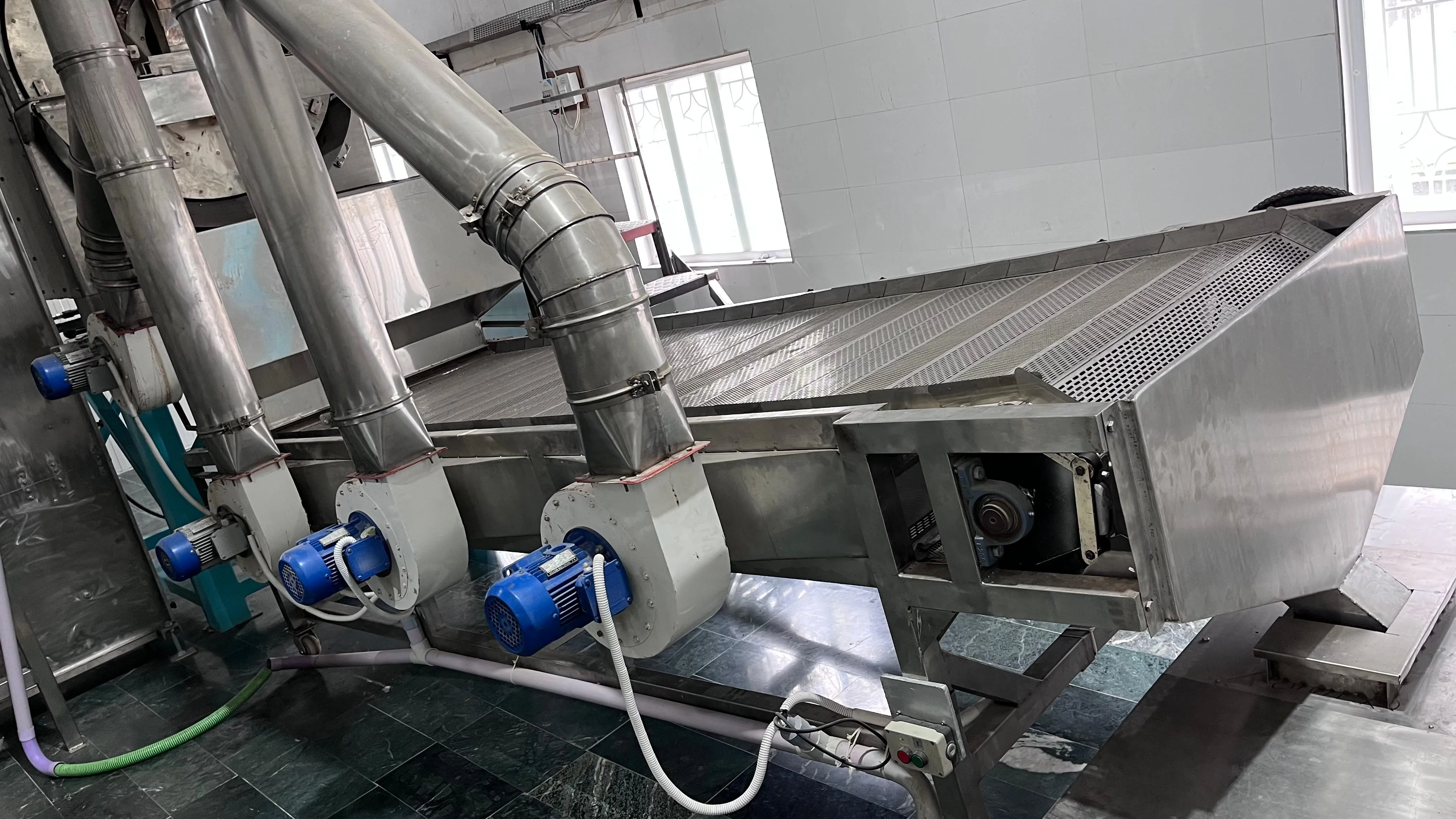

Modular Cooling Belt System
Shrijee Nut Company’s Modular Cooling Belt System is designed to deliver rapid and uniform cooling of roasted peanuts and other food products, ensuring optimal color, texture, and shelf life. Cooling is a critical stage after roasting, and improper heat removal can lead to discoloration, oil sweating, and product quality loss.
Built with a modular belt design and advanced suction blower technology, the system efficiently removes heat while handling products gently. It ensures consistent cooling performance, easy maintenance, and seamless integration into peanut processing and snack production lines.
The Modular Cooling Belt System by Shrijee Nut Company is designed to provide rapid and uniform cooling of roasted peanuts and other food products, ensuring consistent quality, appearance, and shelf life. Effective cooling is a critical step after roasting, as residual heat can cause oil sweating, discoloration, and product degradation if not handled properly.
Equipped with a modular perforated belt and an advanced suction-based cooling system, the machine efficiently removes heat from the product while maintaining gentle handling. The system ensures even airflow across the entire belt surface, resulting in uniform cooling without damaging delicate products.
- Rapid and uniform cooling to maintain product quality and shelf life
- Suction-based airflow system for efficient heat removal
- Prevents discoloration, oil sweating, and product rejection
- Gentle handling ensures damage-free movement of roasted products
- Ideal for peanuts, nuts, seeds, and snack food applications
Modular Belt Design
Individually replaceable belt modules allow quick maintenance without dismantling the entire chain, reducing downtime.
High-Efficiency Suction Cooling
Suction blower system pulls heat from beneath the belt, ensuring rapid and uniform cooling across the entire product layer.
Integrated Hopper Cooling
Additional blower at the feed hopper removes initial heat, preventing surface discoloration right from the entry point.
Stainless Steel Construction
Built with SS 304 food-grade materials for hygiene, durability, and corrosion resistance in food processing environments.
Customizable Belt Dimensions
Available in multiple belt widths and lengths to match different throughput requirements and plant layouts.
Gentle Product Handling
Flat modular belt ensures smooth, damage-free movement of delicate roasted nuts during the cooling process.
Easy Cleaning & Maintenance
Open-frame structure with accessible components allows quick cleaning and sanitation as per food industry standards.
Uniform Cooling Performance
Even airflow distribution prevents hot spots, ensuring consistent cooling and eliminating product rejection.
Product Feeding from Roaster

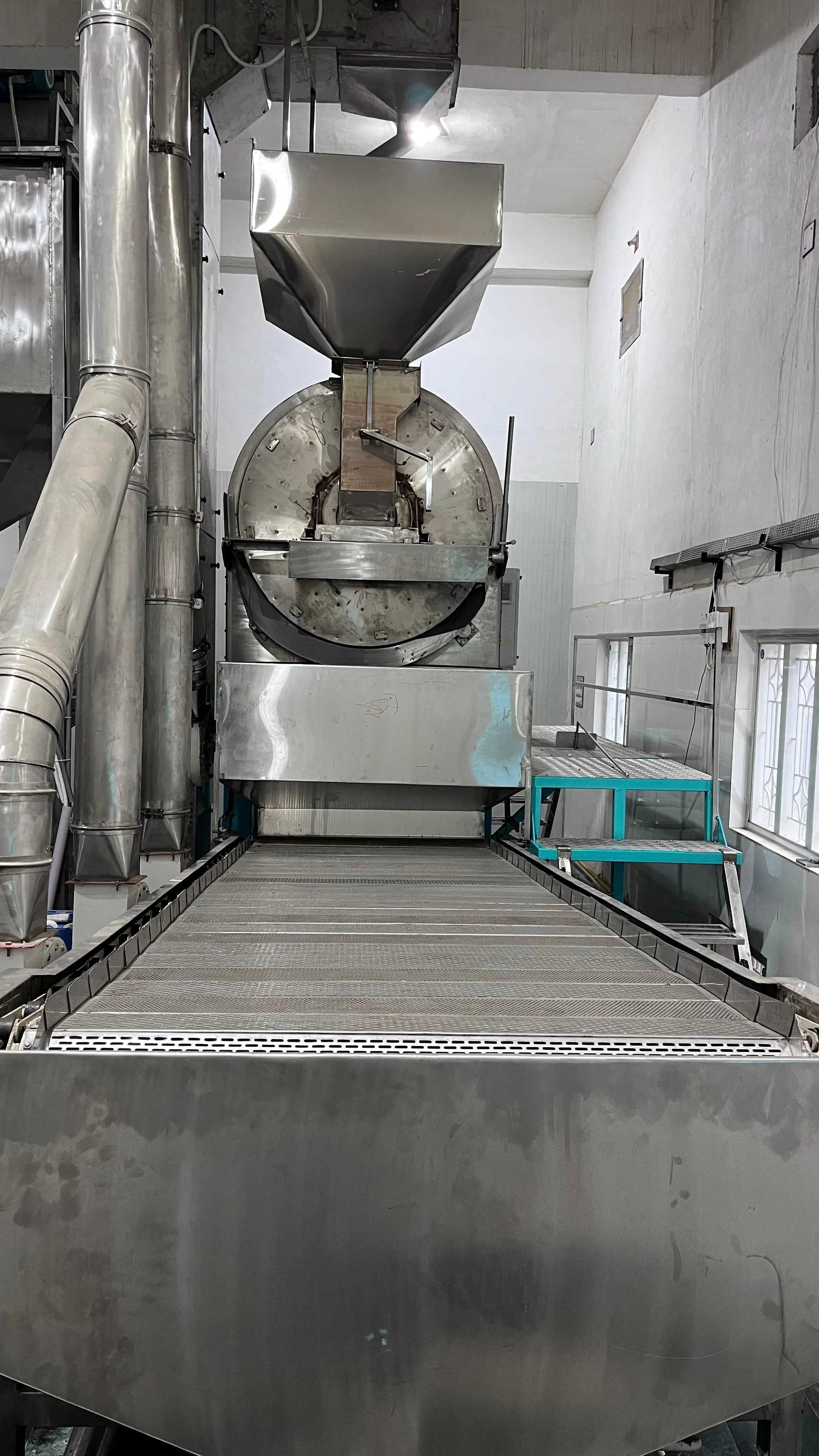

Freshly roasted peanuts or products are discharged directly onto the cooling belt system through the feed hopper.
Initial Hopper Cooling
A dedicated blower at the hopper removes trapped heat immediately, preventing early-stage discoloration and surface damage.
Product Distribution on Belt
The product spreads evenly across the modular perforated belt, ensuring consistent exposure to cooling airflow.
Suction-Based Cooling Process

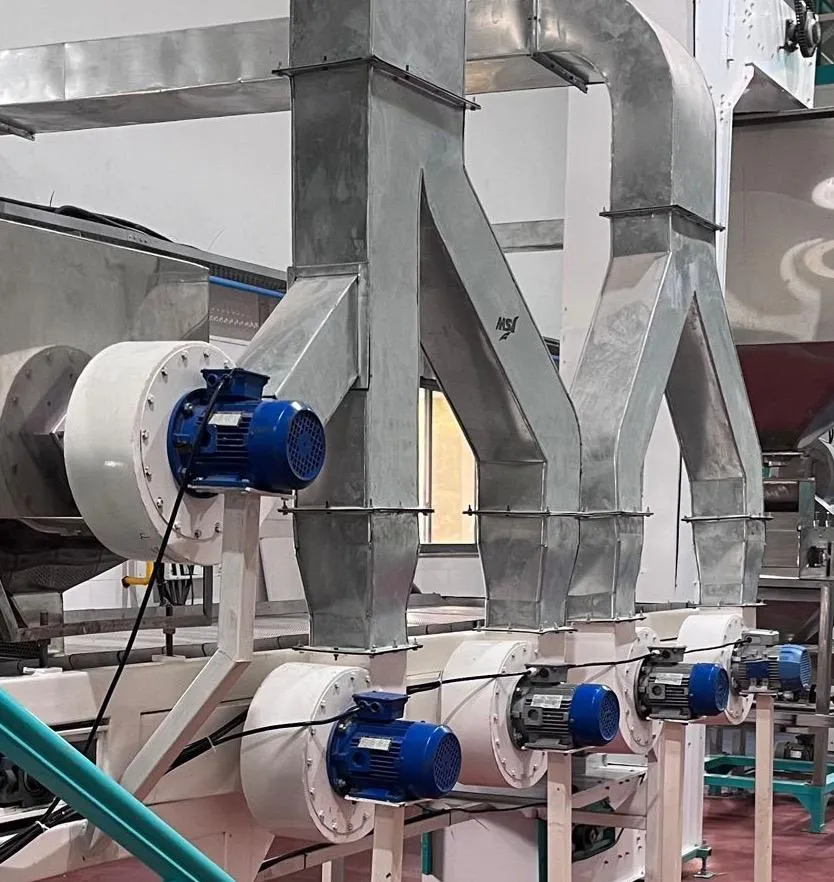

Multiple suction blowers pull air from beneath the belt, extracting heat efficiently and delivering uniform cooling without disturbing the product.
Cooled Product Discharge
The uniformly cooled product exits the system, ready for further processing such as blanching, grinding, or packaging.
| Construction | SS 304 Food Grade Modular Belt |
| Structure | MS Powder Coated / SS 304 |

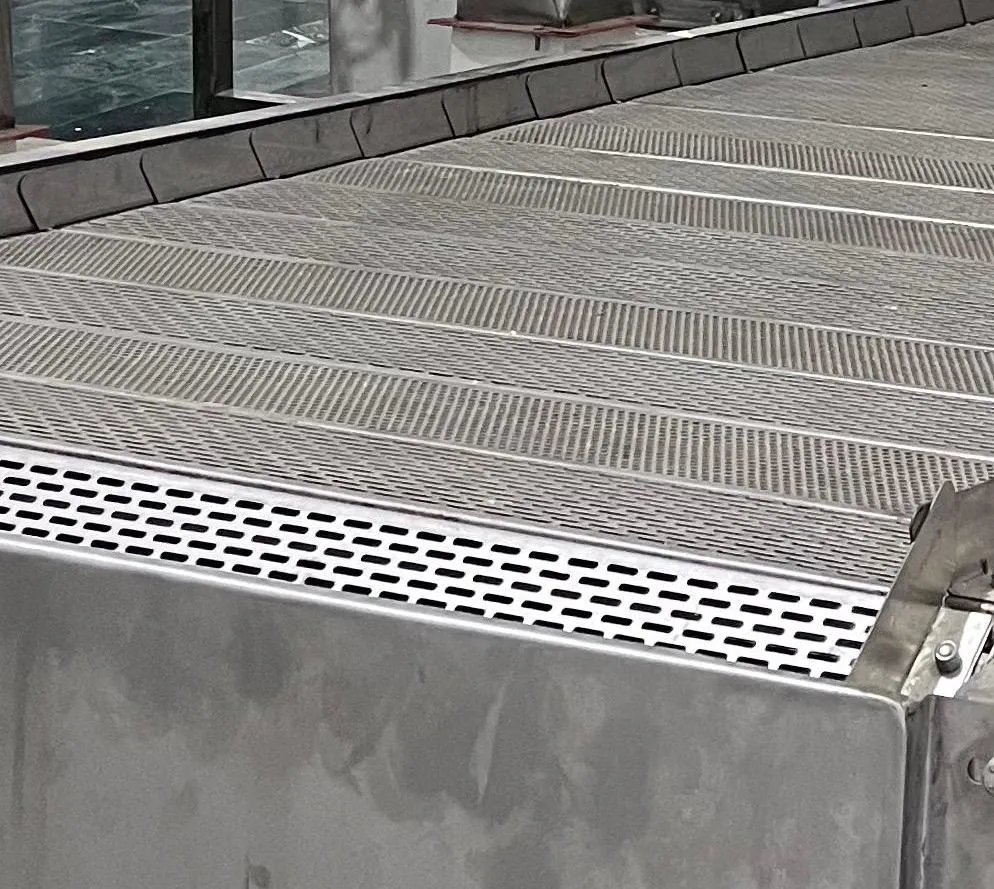

| Cooling Belt Type | Modular Perforated Belt with Quick Replace Sections |
| Cooling System | Side Suction Blowers Across Multiple Zones Below Belt |
| Hopper Cooling | Dedicated Blower Mounted on Feed Hopper |
| Blower Configuration | 1 Blower on Hopper + 3 Blowers (2 HP Each) Along Cooling Zone (Depends on System Size) |
| Belt Width | 600 mm – 1200 mm (Customizable) |
| Belt Length | 2.5 Meter – 10 Meter (Based on Throughput) |
| Control System | Optional VFD Control Panel |
| Operation Type | Continuous Cooling Operation |
| Application | Post-Roasting Cooling for Peanuts, Nuts, Seeds & Snacks |
| Installation | Ready for Integration with Processing Lines |
No Discoloration or Product Rejection
Rapid and uniform cooling prevents oil sweating and surface discoloration, ensuring consistent product quality.
Uniform Cooling Performance
Suction-based airflow ensures even cooling across the entire belt, eliminating hot spots and uneven temperature zones.
Energy Efficient Operation
Optimized suction blower system delivers effective cooling with lower energy consumption.
Quick Maintenance Modular Design
Modular belt sections can be replaced individually, reducing downtime and simplifying maintenance.
Gentle Product Handling
Flat belt design ensures smooth, damage-free movement of delicate roasted nuts during cooling.
Customizable to Your Line
Configurable belt width, length, and blower setup to match your production capacity and plant layout.
